Bosch Ethernet Module For Solution 2000/3000


The perfect addition to your Bosch 2000/3000 alarm system, the B426M Cloud enabled ethernet communication module is designed to provide push notifications for arm/disarm, allowing easier control of your alarm system.
SKU: B426M
Categories: ,
Tag: Brand:
  • Description
  • Additional information
  • Reviews (0)


  • Two-way IP event reporting with remote control panel programming support
  • 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks
  • NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security
  • Advanced configuration by browser or RPS with compatible Bosch control panels
  • Push notifications to mobile
Relative humidityUp to 93% non-condensing
Operating Temperature0° – +49°C (+32° – +120°F)
Dimensions59.5 mm x 108 mm x 16 mm (2.19 in x 4.25 in x 0.629 in)
Current90 mA
Operating Voltage12 VDC nominal
LAN/WANRJ-45 modular port (Ethernet)
Ethernet cableCategory 5 or better unshielded twisted pair
Ethernet cable length100 m (328 ft) max length
Data bus wire gauge18 AWG or 22 AWG
Data bus wire lengthMaximum distance – Wire size: 150 m (500 ft) – 0.65 mm (22 AWG) 300 m (1000 ft) – 1.02 mm (18 AWG)

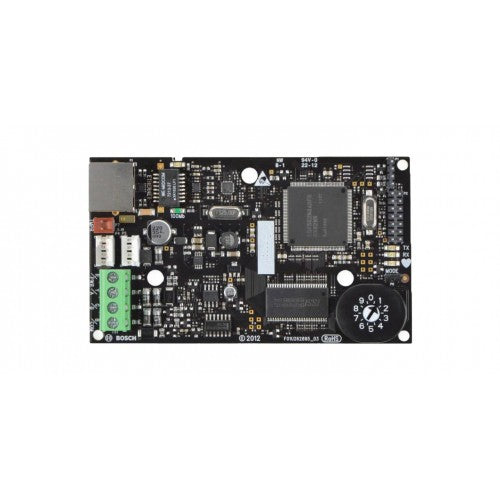

product image
Author Rating
Aggregate Rating
no rating based on 0 votes
Brand Name
Product Name
Bosch Ethernet Module For Solution 2000/3000
AUD 195
Product Availability
Available in Stock

Additional information

Weight0.5 kg
Dimensions32 × 20 × 1 cm
