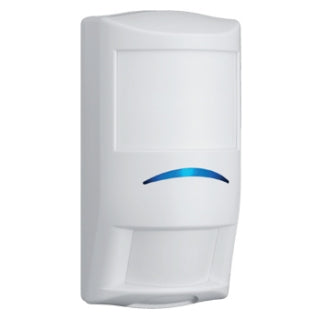

Bosch Blue Line Gen2 PIR Motion Detector


This Bosch PIR offers dynamic temperature compensation. Wall to Wall coverage – superior catch performance. Flexible mounting height, no adjustments to reduce installation time. Self-locking enclosure w/ integrated bubble level.  The perfect addition to your Bosch alarm system.



  • Description
  • Additional information
  • Reviews (0)
Product Description
  • Current (standby/alarm): 10 mA at 12 VDC
  • Voltage (operating): 9 VDC to 15 VDC
  • Environment Complies with EN50130-5 Class II Pet Immunity: One or two pets up to 20 kg (45 lb) or numerous rodents.
  • Relative Humidity: 0 to 95%, non-condensing, For UL Listed product installations, 0 to 85%, non-condensing
  • Temperature (operating): -30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
  • Dimensions: 105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
  • Material: High-impact ABS plastic
  • Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less

Additional information

Weight 0.5 kg
Dimensions 15 × 9 × 1 cm
