Hills Alarm Sensor | Optex FlipX Security PIR 12M Wide / 18M Narrow with Pet Immunity & Bracket
$49.00
13 in stock
The latest Optex Flipx security Pir motion detector provides 12m 85 degrees Wide security detection. Compatible with most security alarm systems, this motion PIR sensor features intelligent inbuilt pet immune technology up to 18kg to help discriminate against small rodents and pests causing unnecessary false alarms.
SKU: 50441-OPTEX FLX-S-ST-BKT FLIPX STD PIR 12M WIDE / 18M NARROW WITH PET INCL BRACKET-5YRS
Categories: Accessories, Motion Detectors
Tags: Reliance, XR Brand: Reliance XR
Categories: Accessories, Motion Detectors
Tags: Reliance, XR Brand: Reliance XR
- Description
- Additional information
Description

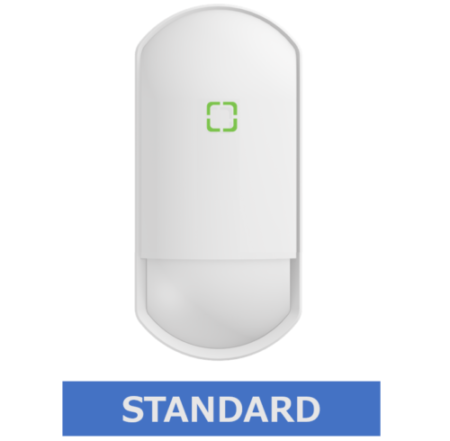

OPTEX FLIPX PIR with PET IMMUNITY
FEATURES:
- Flip Lens
- Pet Tolerance
- Human-Catch Element
- Easily viewable LED
- Compliant to EN-Grade II
SPECIFICATIONS:
| Part Name | FLX-S-ST-BKT (Includes Wall/Ceiling bracket) |
| Model | Standard |
| Mounting height | 2.0 to 3.0 m |
| Detection method | Passive infrared |
| PIR coverage | Wide: 12m 85°/ Narrow: 18m 5° |
| Alarm period | 2.0 ± 0.5 s |
| Warm up period | Approx. 60 s (LED blinks) |
| Power input | 9.5 to 16 VDC |
| Current draw | 8 mA (normal) 11 mA (max.) at 12 VDC |
| Trouble output | – |
| Alarm output | N.C. 24 V DC 0.1 A max. (Resistive load) |
| Tamper output | N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed) |
| Remote LED | – |
| Operating temperature | -20°C to +50°C |
| Temperature compensation | Digital (SMDA) |
| Environmental humidity | 95% RH max. |
| Mounting | Wall, Corner (Indoor) |
| Weight | 90g |
Summary
Author Rating
Aggregate Rating
no rating based on votes
Brand Name
Optex Flipx
Product Name
Hills Reliance Optex FlipX FLX-S-ST-BKT / WITH PET IMMUNE
Price
aud 49
Product Availability
Available in Stock
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 42 × 22 × 1 cm |
