NESS D8XCEL 4G ALARM PANEL WITH NAVIGATOR KEYPAD & SIREN

Ness D8XCEL alarm systems offer the widest possible combination of standard features and options to provide users and installers with the most flexible and powerful security system ever made by Ness.  Designed and manufactured here in Australia, home security users will benefit from the Ness Navigator touchscreen keypad where ease of use and functionality is important.  Domestic users might choose to monitor the system via the onboard voice dialler to their own mobile phone or use a central monitoring station option for 24 hour security monitoring. BUSINESS users have the choice of D8XCEL 8 zone or a D16XCEL 16 Zone alarm kit when protection of multiple zones on a larger site is required.  The onboard Auto-Time feature can take care of scheduled arming/disarming and even programmable time windows for staff access to the premises. The onboard three door access controller can be programmed to grant entry and exit using prox access cards/fobs, operate electric door locks and even arm/disarm the system by access card. Business users can choose to monitor the system using the onboard telephone dialler or via the internet monitoring option (Ness APX).

• 8 alarm zones (D8XCEL4G)
• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via internet using the free Ness XCEL app for apple devices and Android
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, cool rooms etc.
• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• DC power supply with dual 17VAC/20VDC power input

12 Months Manufacturers Warranty

Communicator
• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats
• Remote operation via the free NessXCEL app
NB – It is recommended a licensed  security installer install this product

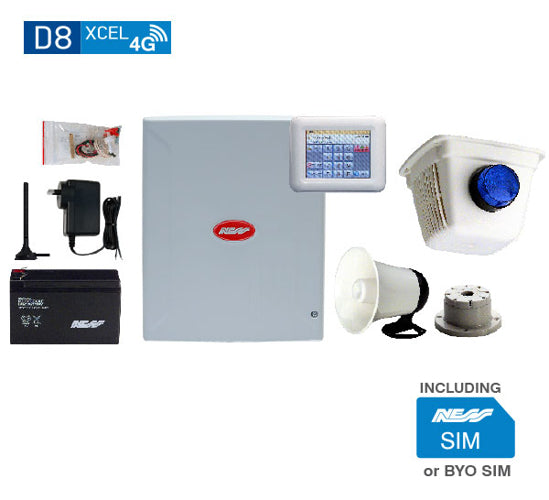

D8XCel panel

Ness Navigator Keypad

20VDC Plug Pack

12V 7 A/H Back Up Battery

1 x Ness Siren Kit Including internal & external siren and strobe

Manuals

Smart Device AppsAndroid App: Ness aComms iOS App: Ness XCEL

Need additional motion detector PIRs? Simply add more of the Ness Xline Series Pirs

Too hard to wire PIRs in certain areas? Why not consider the Ness Lux Wireless Pet Pirs
