Shipping Australia Wide


$599.00 $535.00

Out of stock

The Ness D8xcel navigator alarm kit with siren is the installers choice when it comes to quality home security and value. The Ness Navigator Touch Screen Keypad provides the user and installer with unrivalled ease of use combined with attractive looks.  It features self-explanatory on screen operation guides and intuitive touch screen operation. This alarm systems inbuilt 4G dialler makes it easy to self monitor and view all your zones, get help and arm/disarm your alar, system remotely from your smartphone.
  • Description
  • Additional information
  • Reviews (0)

Ness D8XCEL alarm systems offer the widest possible combination of standard features and options to provide users and installers with the most flexible and powerful security system ever made by Ness.  Designed and manufactured here in Australia, home security users will benefit from the Ness Navigator touchscreen keypad where ease of use and functionality is important.  Domestic users might choose to monitor the system via the onboard voice dialler to their own mobile phone or use a central monitoring station option for 24 hour security monitoring. BUSINESS users have the choice of D8XCEL 8 zone or D16XCEL 16 zone alarm when protection of multiple zones on a larger site is required.  The onboard Auto-Time feature can take care of scheduled arming/disarming and even programmable time windows for staff access to the premises. The onboard three door access controller can be programmed to grant entry and exit using prox access cards/fobs, operate electric door locks and even arm/disarm the system by access card. Business users can choose to monitor the system using the onboard telephone dialler or via the internet monitoring option (Ness APX).


• 8 alarm zones (D8XCEL4G)
• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features – auto arm/disarm, auto aux outputs, time based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.
• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• DC power supply with dual 17VAC/20VDC power input

• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats
• Remote operation via the free NessXCEL SMS app

* Includes Ness SIM or BYO SIM

Security Installers & End users can Activate the SIM here at competitive prices

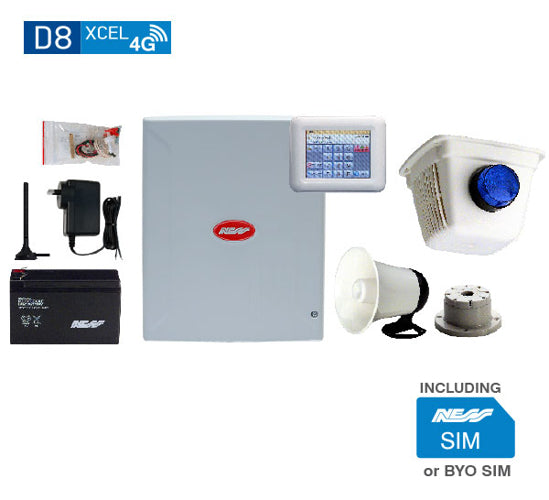

Kit Inclusions:

D8XCel panel

Ness Navigator Keypad

20VDC Plug Pack

12V 7 A/H Back Up Battery

1 x Ness Siren Kit Including internal & external siren and strobe


Smart Device Apps

Android App: Ness aComms

iOS App: Ness iComms

Need additional motion detector PIRs? Simply add more of the Ness Xline Series Pirs

Too hard to wire PIRs in certain areas? Why not consider the Ness Air-2 XIR200 Wireless PIRS

product image
Author Rating
Aggregate Rating
no rating based on 0 votes
Brand Name
Product Name
AUD 529
Product Availability
Available in Stock

Additional information

Weight 5 kg
Dimensions 50 × 40 × 1 cm
