Premium Digital PIR Detection with Sleek Low-Profile Design

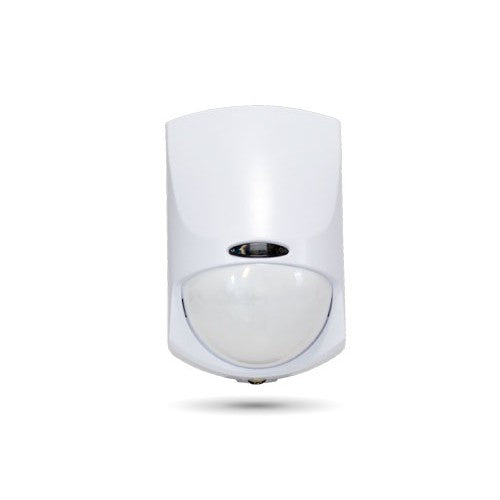

The Ness XIR100H Xline Series PIR Detector combines advanced digital signal analysis with an aesthetically appealing low-profile design. Offering reliable 15-meter detection range with a wide 100° coverage angle, this detector provides professional-grade intrusion detection while maintaining a discreet appearance that blends seamlessly into any interior.
Why Choose the XIR100H?
Part of Ness Security's acclaimed Xline Series, the XIR100H delivers superior performance through digital signal processing technology that minimizes false alarms while maximizing detection accuracy. The compact, modern design makes it ideal for residential and commercial installations where both performance and aesthetics matter. With temperature compensation and white light protection, this detector maintains consistent performance in varying environmental conditions.
Key Features & Benefits:
-
Digital Signal Analysis - Advanced processing technology for accurate detection and reduced false alarms
-
15m Detection Range - Wide 100° coverage angle protects large areas effectively
-
Low Profile Design - Sleek, modern appearance (96x60x44mm) blends into any décor
-
Temperature Compensation - Maintains optimal performance across varying temperatures
-
White Light Protection - Unaffected by bright lighting conditions or sunlight
-
Pulse Counter - Adjustable sensitivity reduces false triggers
-
Bypassable LED - Flexible LED control for discreet operation
-
Anti-Opening Protection - Tamper detection alerts you to unauthorized access
-
Low Power Consumption - Only 15mA at 12V DC for efficient operation
-
Professional Installation - Designed for 2.2m mounting height for optimal coverage
Technical Specifications:
- Detection Technology: Passive Infrared (PIR)
- Detection Range: 15 metres
- Detection Angle: 100°
- Signal Processing: Digital analysis
- Installation Height: 2.2m
- Operating Temperature: 0°C to +50°C
- Power Supply: 9V to 16V DC
- Current Draw: 15mA @ 12V DC
- Dimensions: 96 x 60 x 44mm
- Features: Pulse counter, temperature compensation, white light protection, bypassable LED, anti-opening protection
- Note: Mounting bracket sold separately - Ness XLine Series Detector Bracket
Xline Series Excellence
The XIR100H is part of Ness Security's Xline Series, designed to deliver professional-grade security with modern aesthetics. The low-profile design and compact dimensions make it perfect for installations where visual discretion is important without compromising on detection performance. Integrates seamlessly with Ness alarm systems for complete security solutions.
Perfect For:
- Residential homes requiring discreet protection
- Commercial offices and retail spaces
- Areas with varying lighting conditions
- Professional security installations
- Locations requiring temperature-stable detection
